Nu-X Time Core Deluxe mkII Guitar Delay Effect Pedal

Nu-X Time Core Deluxe mkII Guitar Delay Effect Pedal

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analogue, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility.

New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.

Specifications:

• Full stereo or mono signal path
• True or buffered bypass options
• 7 distinct delay types
• 40 second looper function
• USB-C port for firmware updates
• Requires suitable 9Vdc power adaptor (e.g. 173.290UK)
• DC input connection DC5521 jack (for optional adaptor - pin-negative)
• Current consumption <120mA

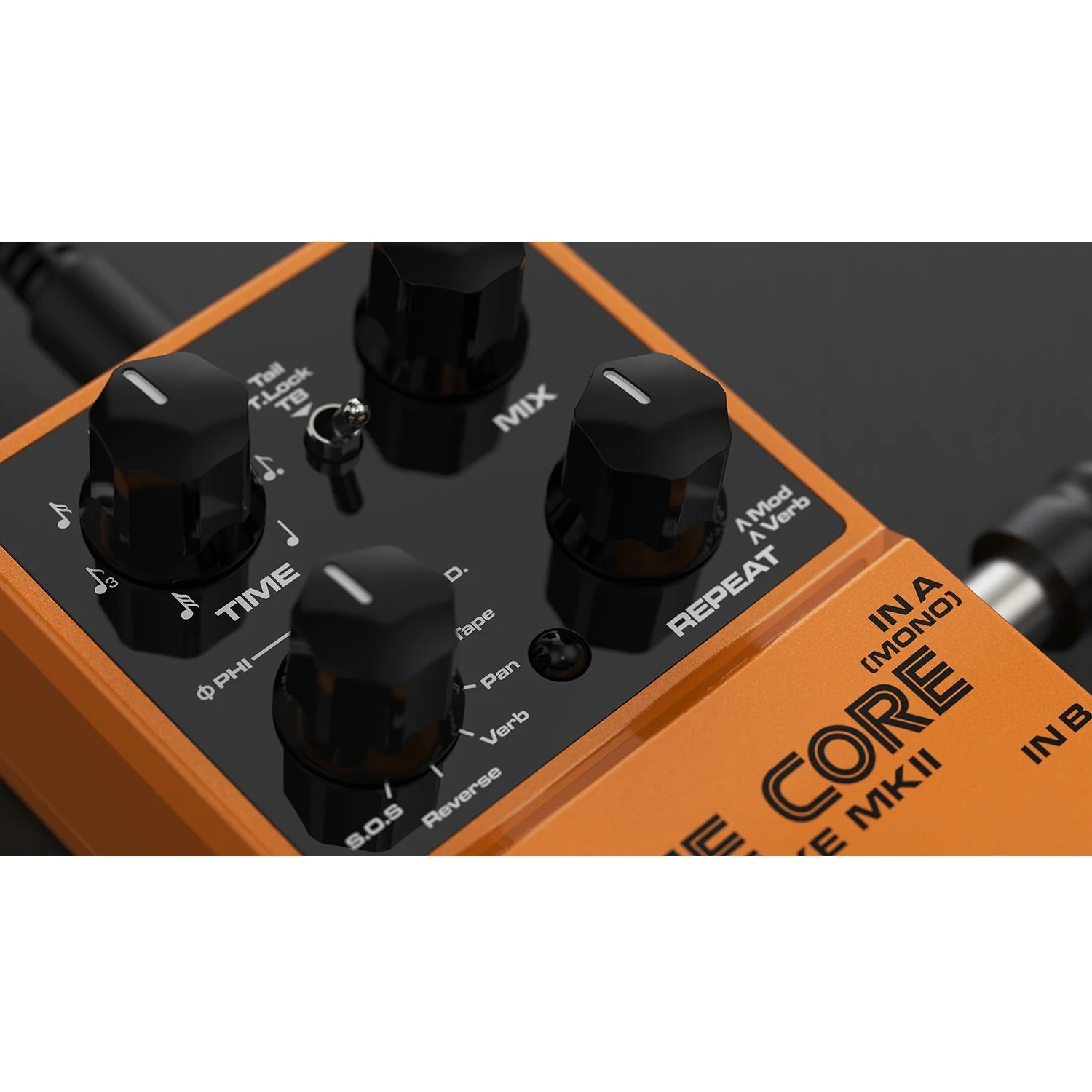

• Controls Time, Mix, Repeat, Delay type
• Recording mode 40 second sound-on-sound looper
• Modes Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay

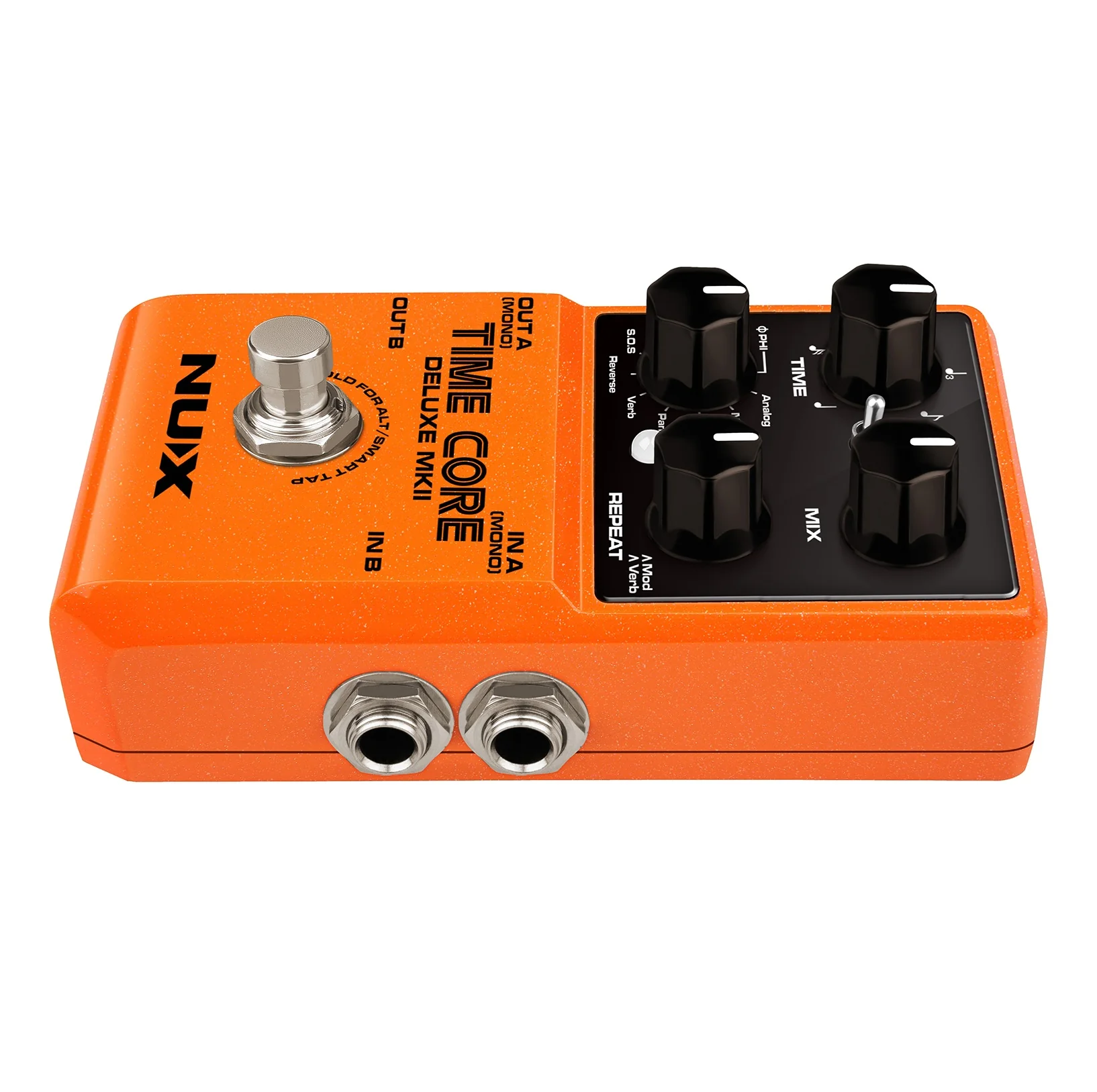

• Inputs L+R 6.3 mm mono jack
• Outputs L+R 6.3mm mono jack
• Sampling format 48kHz, 24-bit
• Input impedance 1M ohm
• Output impedance 1k ohm
• Dynamic range 104dB
• Dimensions 122 x 72 x 47 mm
• Weight 270g
